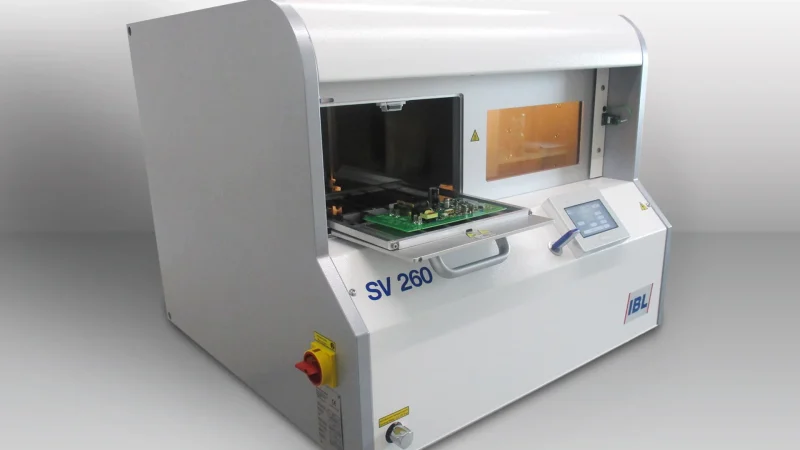

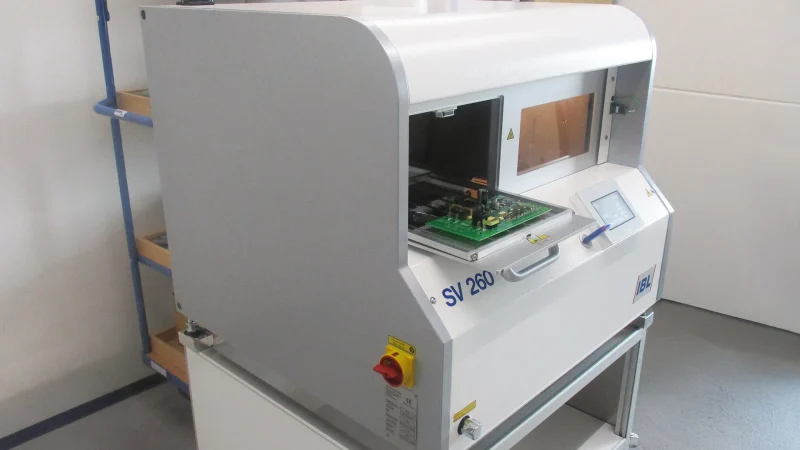

The SV260 vapour phase machine from the Economy series impresses with its 2-chamber design, simple operation and compact construction. It has been specially designed for development and prototype production, even soldering BGAs and LGAs reliably and precisely. The small footprint makes it perfect for development-related applications and the smallest production environments.
